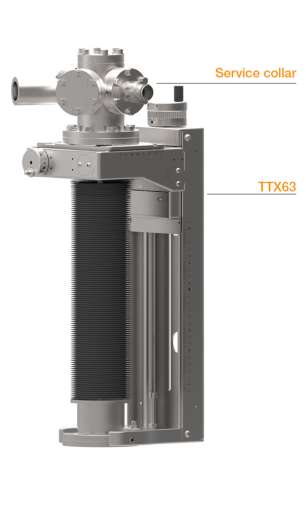

In this example a manually actuated TETRAXE with 250mm stroke and +/-15mm X & Y motion has been combined with  a service collar and magnetically-coupled rotary feedthrough to provide rotation of a shaft.

X&Y Motion

• Manually actuated +/- 15mm X & Y travel.

Z Translation

• Manually actuated 250mm Z translation.

Tilt

• Manual +/- 2 degree tilt integrated in to the mounting flange.

Service Collar

• Providing feedthroughs for power, thermocouple, cooling and biasing.

TTX Key Features

• TETRAXE provides the perfect platform to build complex manipulators
• CF40, CF63 & CF100 flange options
• Z translation to 300mm
• X&Y manipulation up to +/-15mm
