Standard Version Sub-D Feedthroughs

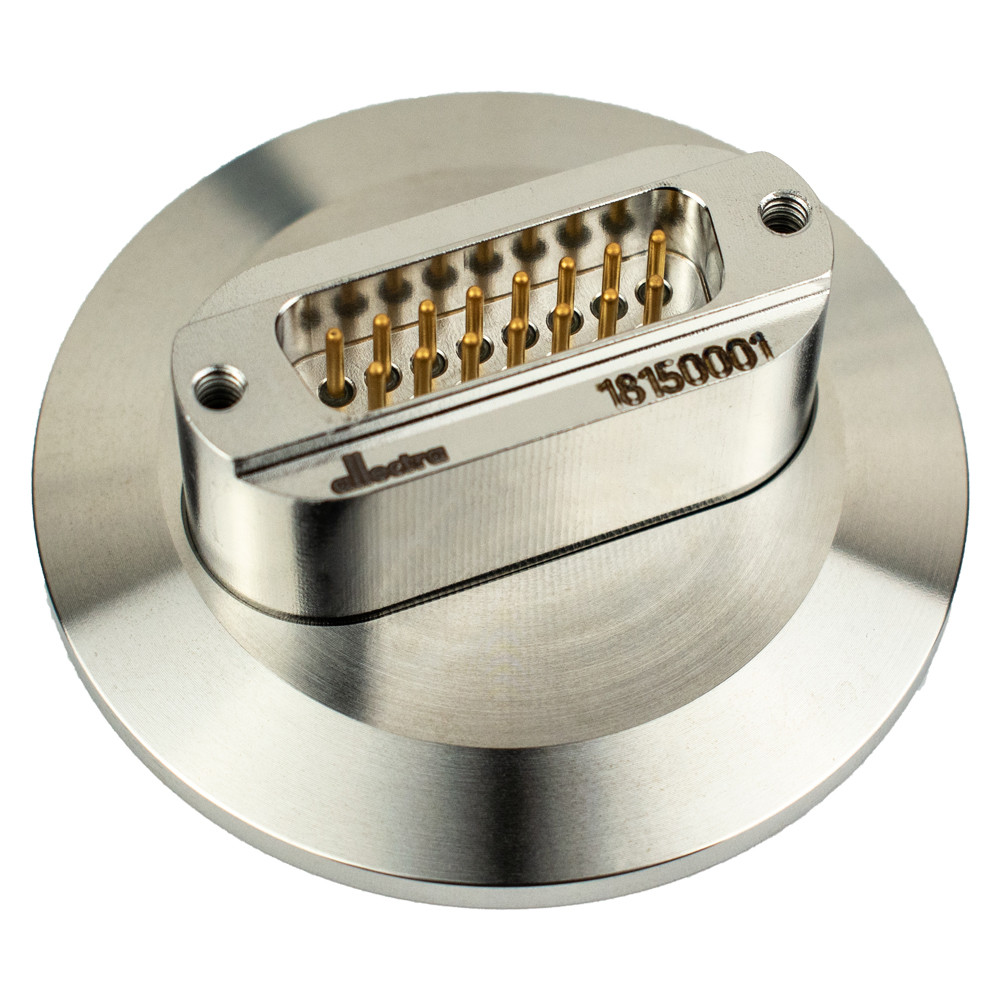

Sub-Miniature D Feedthroughs
The Sub-miniature D Type feedthrough is based on the electronics industry standard MIL-C-24308. These are available as 9, 15, 25, 37 and 50 way feedthroughs and also multiple and custom feedthrough flanges. Accessories include UHV, PEEK, ceramic and air side sockets.
Sub-D Feedthroughs on CF, KF and ISO-K vacuum flanges:
210-D09-C40
DN40CF FLANGE, SUB-D 9-WAY FEEDTHROUGH, UHV
210-D09-C40-NM
DN40CF FLANGE, SUB-D 9-WAY NON-MAGNETIC FEEDTHROUGH, UHV
210-D09-C40-TI
DN40CF FLANGE, SUB-D 9-WAY TITANIUM NON-MAGNETIC FEEDTHROUGH, UHV
210-D09-C63-2
DN63CF FLANGE, 2 x SUB-D 9-WAY FEEDTHROUGHS, UHV
210-D09-C63-3
DN63CF FLANGE, 3 x SUB-D 9-WAY FEEDTHROUGHS, UHV
210-D09-ISO63-2
DN63ISO-K FLANGE, 2 x SUB-D 9-WAY FEEDTHROUGHS
210-D09-ISO63-3
DN63ISO-K FLANGE, 3 x SUB-D 9-WAY FEEDTHROUGHS
210-D09-K25
DN25KF FLANGE, SUB-D 9-WAY FEEDTHROUGH
210-D09-K40
DN40KF FLANGE, SUB-D 9-WAY FEEDTHROUGH
210-D09-K50-2
DN50KF FLANGE, 2 x SUB-D 9-WAY FEEDTHROUGHS
210-D15-C40
DN40CF FLANGE, SUB-D 15-WAY FEEDTHROUGH, UHV
210-D15-C40-NM
DN40CF FLANGE, SUB-D 15-WAY NON-MAGNETIC FEEDTHROUGH, UHV
210-D15-C40-TI
DN40CF FLANGE, SUB-D 15-WAY TITANIUM NON-MAGNETIC FEEDTHROUGH, UHV
210-D15-C63
DN63CF FLANGE, SUB-D 15-WAY FEEDTHROUGH, UHV
210-D15-C63-2
DN63CF FLANGE, 2 x SUB-D 15-WAY FEEDTHROUGHS, UHV
210-D15-C63-3
DN63CF FLANGE, 3 x SUB-D 15-WAY FEEDTHROUGHS, UHV
210-D15-ISO63-2
DN63ISO-K FLANGE, 2 x SUB D 15-WAY FEEDTHROUGHS
210-D15-ISO63-3
DN63ISO-K FLANGE, 3 x SUB-D 15-WAY FEEDTHROUGHS
210-D15-K40
DN40KF FLANGE, SUB-D 15-WAY FEEDTHROUGH
210-D15-K50
DN50KF FLANGE, SUB-D 15-WAY FEEDTHROUGH
210-D25-C40
DN40CF FLANGE, SUB-D 25-WAY FEEDTHROUGH
210-D25-C63
DN63CF FLANGE, SUB-D 25-WAY FEEDTHROUGH, UHV
210-D25-C63-2
DN63CF FLANGE, 2 x SUB-D 25-WAY FEEDTHROUGHS, UHV
210-D25-ISO100-3
DN100ISO-K FLANGE, 3 x SUB-D 25-WAY FEEDTHROUGHS
210-D25-ISO100-4
DN100ISO-K FLANGE, 4 x SUB-D 25-WAY FEEDTHROUGHS
210-D25-ISO160-4
DN160ISO-K FLANGE, 4 x SUB-D 25-WAY FEEDTHROUGHS
210-D25-ISO160-8
DN160ISO-K FLANGE, 8 x SUB-D 25-WAY FEEDTHROUGHS
210-D25-ISO63
DN63ISO-K FLANGE, SUB-D 25-WAY FEEDTHROUGH
210-D25-ISO63-2
DN63ISO-K FLANGE, 2 x SUB-D 25-WAY FEEDTHROUGHS
210-D25-K50
DN50KF FLANGE, SUB-D 25-WAY FEEDTHROUGH
210-D37-C100
DN100CF FLANGE, SUB-D 37-WAY FEEDTHROUGH, UHV
210-D37-C63
DN63CF FLANGE, SUB-D 37-WAY FEEDTHROUGH, UHV
210-D37-ISO100
DN100ISO-K FLANGE, SUB-D 37-WAY FEEDTHROUGH
210-D37-ISO100-2
DN100ISO-K FLANGE, 2 x SUB-D 37-WAY FEEDTHROUGHS
210-D50-C100
DN100CF FLANGE, SUB-D 50-WAY FEEDTHROUGH, UHV
210-D50-C100-2
DN100CF FLANGE, 2 x SUB-D 50-WAY FEEDTHROUGHS, UHV
210-D50-C63
DN63CF FLANGE, SUB-D 50-WAY FEEDTHROUGH, UHV
210-D50-ISO100
DN100ISO-K FLANGE, SUB-D 50-WAY FEEDTHROUGH
210-D50-ISO100-2
DN100ISO-K FLANGE, 2 x SUB-D 50-WAY FEEDTHROUGHS
210-D50-ISO63
DN63ISO-K FLANGE, SUB-D 50-WAY FEEDTHROUGH
218-D09-SS
SUB-D 9-WAY WELDABLE FEEDTHROUGH
218-D15-SS
SUB-D 15-WAY WELDABLE FEEDTHROUGH
218-D25-SS
SUB-D 25-WAY WELDABLE FEEDTHROUGH
218-D37-SS
SUB-D 37-WAY WELDABLE FEEDTHROUGH
218-D50-SS
SUB-D 50-WAY WELDABLE FEEDTHROUGH
219-D09-7-D15-6-C160
Multiple Sub-D Feedthrough on Standard Flang
