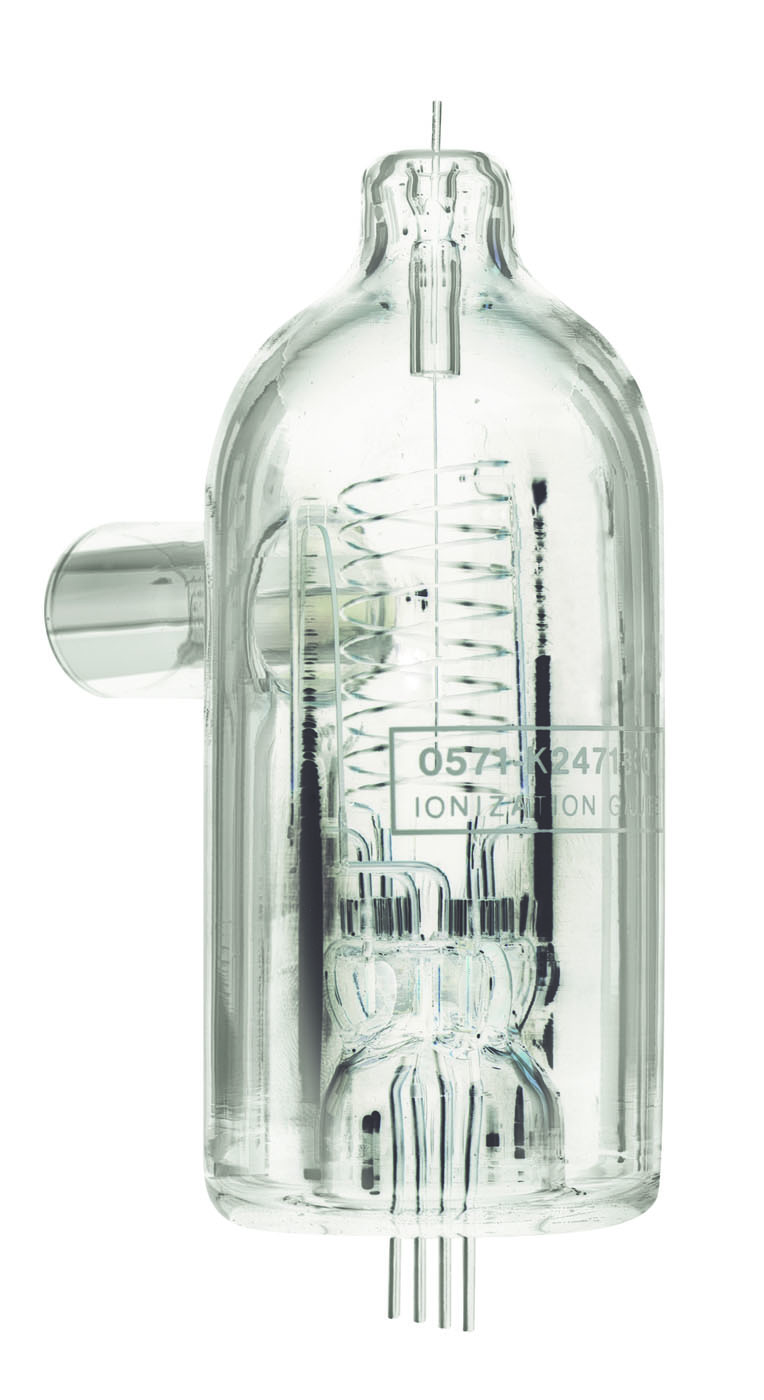

571 Bayard-Alpert Ion
Gauge Tube
The Agilent 571 Bayard-Alpert gauge offers high performance over a pressure range of 2 x 10-10 to 1 x 10-3 Torr (2.6 x 10-10 to 1.33 x 10-3 mbar).
The 571 gauge withstands long periods of degassing or accidental exposure to atmospheric pressure while at operating temperature and will still recover its original characteristics. A reference gauge is also available, sealed off at ≤ 5 x 10-6 Torr for use in testing a gauge controller.
The 571 gauge withstands long periods of degassing or accidental exposure to atmospheric pressure while at operating temperature and will still recover its original characteristics. A reference gauge is also available, sealed off at ≤ 5 x 10-6 Torr for use in testing a gauge controller.
- High vacuum range from 2 x 10-10 to 1 x 10-3 Torr (5 x 10-10 to 6.7 x 10-2 mbar)
- Rugged design can withstand long periods of degassing or accidental exposure to atmosphere at operating temperature and still recover its original characteristics
- Yttria-coated iridium filament that resists oxidation for longer life
- High X-ray limit allows the gauge to give more accurate readings at lower pressure
Specifikationer
Leverantör
Tillbehör
XGS-600
The XGS-600 gauge controller allows for simultaneous or independent operation.
