K,C & N Thermocouple Types


Feedthroughs

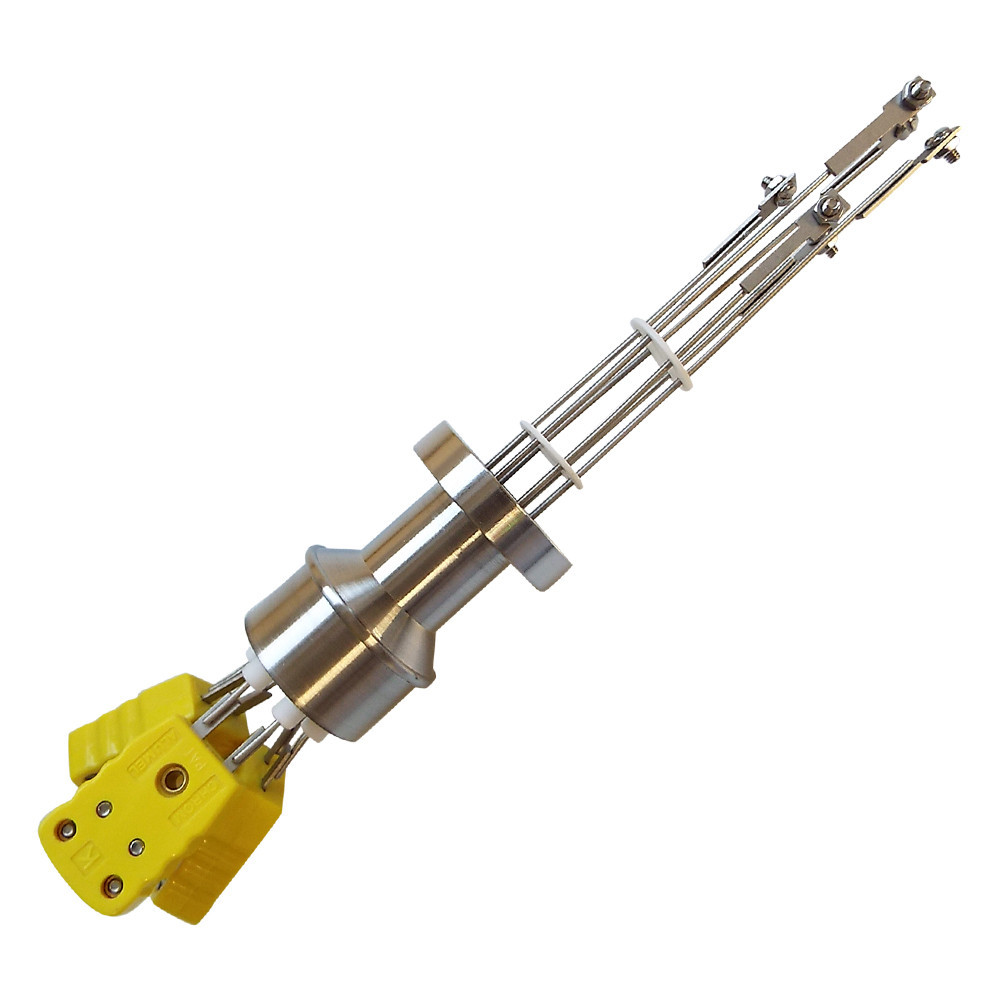

Thermocouple feedthroughs have pins made from the corresponding thermocouple pair materials. On the vacuum side, the pins terminate with a screw connector (included). The (+) pole is 25mm shorter than the (-) pole. Miniature Thermocouple connectors are included for the air side.
Type K, N and C Thermocouple Feedthroughs with air side sockets:
262-TCC-1-C16
DN16CF THERMOCOUPLE FEEDTHROUGH, TYPE C, 1 PAIR, AIR & VACUUM-SIDE CONNECTORS

262-TCC-2-C16
DN16CF THERMOCOUPLE FEEDTHROUGH, TYPE C, 2 PAIRS, AIR & VACUUM-SIDE CONNECTORS

262-TCC-3-C16
DN16CF THERMOCOUPLE FEEDTHROUGH, TYPE C, 3 PAIRS, AIR & VACUUM-SIDE CONNECTORS

262-TCC-3-K16
DN16KF THERMOCOUPLE FEEDTHROUGH, TYPE C, 3 PAIRS, AIR & VACUUM-SIDE CONNECTORS
262-TCC-5-C40
DN40CF THERMOCOUPLE FEEDTHROUGH, TYPE C, 5 PAIRS, AIR & VACUUM SIDE CONNECTORS
262-TCK-1-K16
DN16KF THERMOCOUPLE FEEDTHROUGH TYPE K, 1 PAIR, AIR & VACUUM-SIDE CONNECTORS
262-TCK-2-C16
DN16CF THERMOCOUPLE FEEDTHROUGH, TYPE K, 2 PAIRS, AIR & VACUUM-SIDE CONNECTORS

262-TCK-2-K16
DN16KF THERMOCOUPLE FEEDTHROUGH, TYPE K, 2 PAIRS, AIR & VACUUM-SIDE CONNECTORS

262-TCK-3-C16
DN16CF THERMOCOUPLE FEEDTHROUGH, TYPE K, 3 PAIRS, AIR & VACUUM-SIDE CONNECTORS

262-TCK-3-K16
DN16KF THERMOCOUPLE FEEDTHROUGH, TYPE K, 3 PAIRS, AIR & VACUUM-SIDE CONNECTORS

262-TCK-4-C40
DN40CF THERMOCOUPLE FEEDTHROUGH, TYPE K, 4 PAIRS, AIR & VACUUM-SIDE CONNECTORS

262-TCK-4-K40
DN40KF THEROCOUPLE FEEDTHROUGH, TYPE K, 4 PAIRS, AIR & VACUUM-SIDE CONNECTORS

262-TCK-5-C40
DN40CF THERMOCOUPLE FEEDTHROUGH, 5 PAIRS, TYPE K, AIR & VACUUM-SIDE CONNECTORS

262-TCK-5-K40
DN40KF THERMOCOUPLE FEEDTHROUGH, 5 PAIRS, TYPE K, AIR & VACUUM-SIDE CONNECTORS

262-TCN-1-C16
DN16CF (1.33” OD flange)

262-TCN-2-C16
DN16CF (1.33” OD flange)

262-TCN-3-C16
DN16CF (1.33” OD flange)

262-TCN-4-C40
DN16CF THERMOCOUPLE FEEDTHROUGH, TYPE N, 4 PAIRS, AIR & VACUUM-SIDE CONNECTORS

262-TCN-4-K40
DN40KF THERMOCOUPLE FEEDTHROUGH, TYPE N, 4 PAIRS, AIR & VACUUM-SIDE CONNECTORS

262-TCN-5-C40
DN40CF THERMOCOUPLE FEEDTHROUGH, TYPE N, 5 PAIRS, AIR & VACUUM-SIDE CONNECTORS
