Power Glove Feedthroughs
Power/High Voltage Feedthroughs

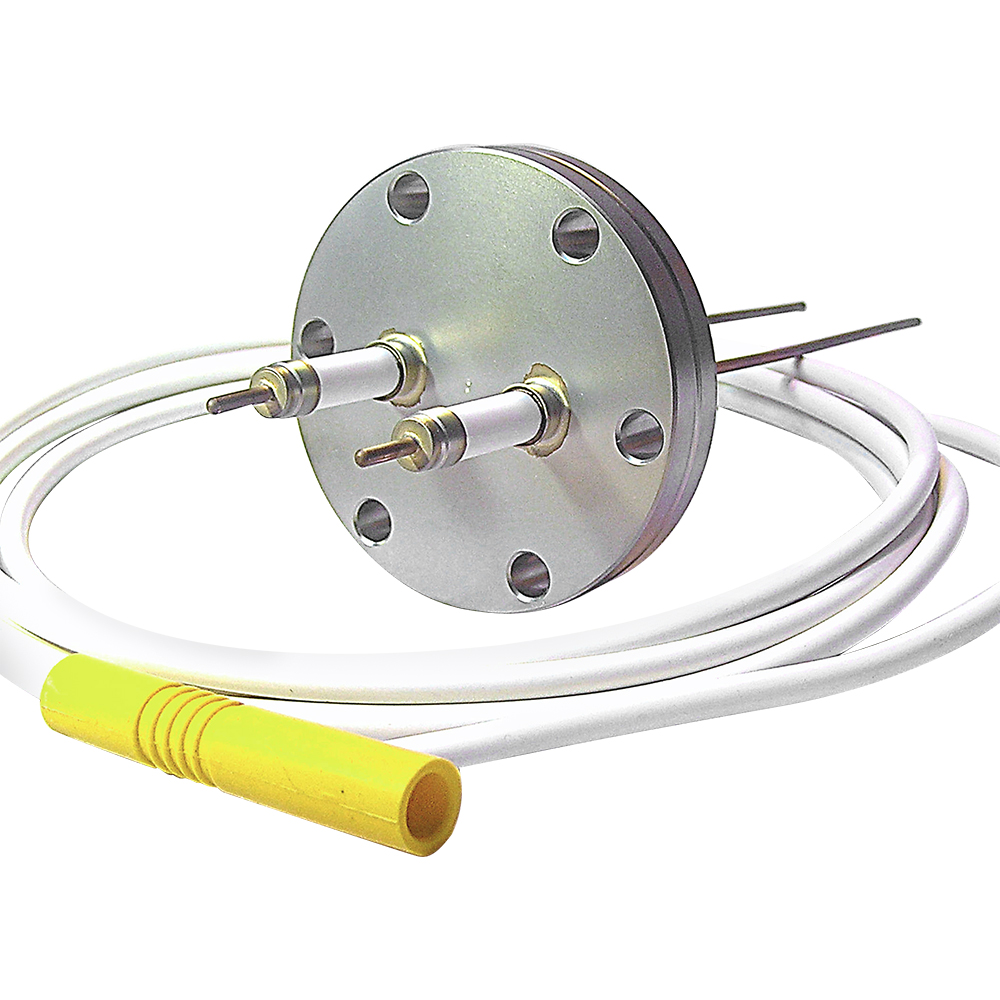

Power Glove feedthroughs are a design of High Voltage 5KV, 10KV, 20KV to 40KV feedthroughs and are supplied with sockets and air side cables 2.4m in length.
There are options for 1, 2 or 4 pins on a 40CF flange or the feedthrough can be supplied on CF, KF, ISO or custom flange designs.
Power Glove Feedthroughs up to 20kV:
265-001SS20K
WELDABLE POWER GLOVE F/T, STAINLESS STEEL CONDUCTOR, 20KV 1A, WITH AIR SIDE SOCKET & CABLE
265-001SS5K
WELDABLE POWER GLOVE F/T, STAINLESS STEEL CONDUCTOR, 5KV 1A, WITH AIR SIDE SOCKET & CABLE
265-001SS5K-2-C40
DN40CF POWER GLOVE F/T, 2x STAINLESS STEEL CONDUCTORS, 5KV 1A, WITH AIR SIDE SOCKETS & CABLES
265-001SS5K-4-C40
DN40CF POWER GLOVE F/T, 4x STAINLESS STEEL CONDUCTORS, 5KV 1A, WITH AIR SIDE SOCKETS & CABLES
265-001SS5K-C16
DN16CF POWER GLOVE F/T, STAINLESS STEEL CONDUCTOR, 5KV 1A, WITH AIR SIDE SOCKET & CABLE
265-015NI10K
WELDABLE POWER GLOVE F/T, NICKLE CONDUCTOR, 10KV 15A, WITH AIR SIDE SOCKET & CABLE
265-015NI10K-2-C40
DN40CF POWER GLOVE F/T, 2x NICKLE CONDUCTORS, 10KV 15A, WITH AIR SIDE SOCKET & CABLES
265-015NI10K-4-C40
DN40CF POWER GLOVE F/T, 4x NICKLE CONDUCTORS, 10KV 15A, WITH AIR SIDE SOCKET & CABLES
265-015NI10K-C16
DN16CF POWER GLOVE F/T, NICKLE CONDUCTOR, 10KV 15A, WITH AIR SIDE SOCKET & CABLE
265-015NI20K
WELDABLE POWER GLOVE F/T, NICKLE CONDUCTOR, 20KV 15A, WITH AIR SIDE SOCKET & CABLE
265-015NI20K-2-C40
DN40CF POWER GLOVE F/T, 2x NICKLE CONDUCTORS, 20KV 15A, WITH AIR SIDE SOCKET & CABLES
265-015NI20K-4-C40
DN40CF POWER GLOVE F/T, 4x NICKLE CONDUCTORS, 20KV 15A, WITH AIR SIDE SOCKET & CABLES
265-015NI5K
WELDABLE POWER GLOVE F/T, NICKLE CONDUCTOR, 5KV 5A, WITH AIR SIDE SOCKET & CABLE
265-015NI5K-2-C40
DN40CF POWER GLOVE F/T, 2x NICKLE CONDUCTORS, 5KV 5A, WITH AIR SIDE SOCKETS & CABLES
265-015NI5K-4-C40
DN40CF POWER GLOVE F/T, 4x NICKLE CONDUCTORS, 5KV 5A, WITH AIR SIDE SOCKETS & CABLES
265-025CU10K
WELDABLE POWER GLOVE F/T, COPPER CONDUCTOR, 10KV 25A, WITH AIR SIDE SOCKET & CABLE
265-025CU10K-2-C40
DN40CF POWER GLOVE F/T, 2x COPPER CONDUCTORS, 10KV 25A, WITH AIR SIDE SOCKETS & CABLES
265-025CU10K-4-C40
DN40CF POWER GLOVE F/T, 4x COPPER CONDUCTORS, 10KV 25A, WITH AIR SIDE SOCKETS & CABLES
265-025CU10K-C16
DN16CF POWER GLOVE F/T, COPPER CONDUCTOR, 10KV 25A, WITH AIR SIDE SOCKET & CABLE
265-025CU20K
WELDABLE POWER GLOVE F/T, COPPER CONDUCTOR, 20KV 25A, WITH AIR SIDE SOCKET & CABLE
265-025CU20K-2-C40
DN40CF POWER GLOVE F/T, 2x COPPER CONDUCTOR, 20KV 25A, WITH AIR SIDE SOCKET & CABLE
265-025CU20K-4-C40
DN40CF POWER GLOVE F/T, 4x COPPER CONDUCTOR, 20KV 25A, WITH AIR SIDE SOCKET & CABLE
265-025CU20K-C16
DN16CF POWER GLOVE F/T, COPPER CONDUCTOR, 20KV 25A, WITH AIR SIDE SOCKET & CABLE
265-025CU5K
WELDABLE POWER GLOVE F/T, COPPER CONDUCTOR, 5KV 25A, WITH AIR SIDE SOCKET & CABLE
265-025CU5K-2-C40
DN40CF POWER GLOVE F/T, 2x COPPER CONDUCTORS, 5KV 25A, WITH AIR SIDE SOCKETS & CABLES
265-025CU5K-4-C40
DN40CF POWER GLOVE F/T, 4x COPPER CONDUCTORS, 5KV 25A, WITH AIR SIDE SOCKETS & CABLES
265-025CU5K-C16
DN16CF POWER GLOVE F/T, COPPER CONDUCTOR, 5KV 25A, WITH AIR SIDE SOCKET & CABLE
265-CAB-20K
POWER GLOVE AIR SIDE SOCKET AND CABLE, 20KV
265-CAB-5K
POWER GLOVE AIR SIDE SOCKET AND CABLE, 5KV
