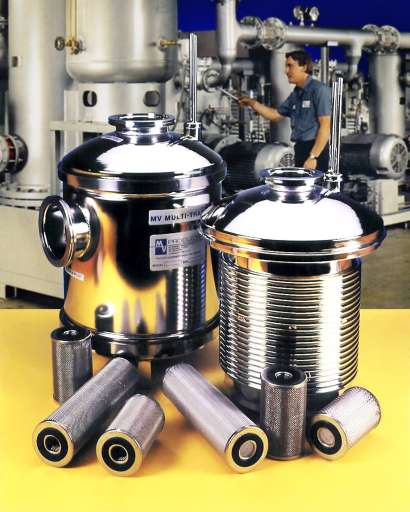

MV MULTI-TRAP is a high efficiency vacuum pump inlet or
exhaust trap designed specifically to condense, absorb,
and neutralize process byproducts generated from vacuum
applications in the chemical and pharmaceutical industries.

The vessel will hold up to several gallons of condensed
solvent, and can be retrofitted with float switch, waste
reservoir and draining accessories.

Key features

• Large cooled surface area for condensing of solvents,
  acids, and water vapor
• All stainless steel construction withstands corrosive
  environments
• Modular design allows for numerous configurations
  and easy servicing
• Stacking modules available for increased capacity
• Optional drain port for solvent draining and
  reclamation
• Customizable absorption/neutralization stages for optimal efficiency
• Processes such as distillation, drying, degassing, central lab vacuum protection

Configurations

• 355082 ISO-80 Flange
  • 12″ diameter MULTI-TRAP with 3″ inlet and
    exhaust ports and cooled filter assembly. Requires
    5 filter elements in stage 2 and 5 elements in
    stage 3 (elements not included)
• 355082S ISO-80 Flange
  • Same as above except converted to hold one stage
    of 9.5″ filters. Requires 5 (9.5″) filter elements in
    stage 2 (elements not included)

• 355102 ISO-100 Flange
  • 12″ diameter MULTI-TRAP with 4″ inlet and
    exhaust ports and cooled filter assembly. Requires
    5 filter elements in stage 2 and 5 elements in
    stage 3 (elements not included)

• 355102S ISO-100 Flange
  • Same as above except converted to hold one stage
    of 9.5″ filters. Requires 5 (9.5″) filter elements in
    stage 2 (elements not included)

• 355212 n/a Flange
  • Additional cooling option
