The SEMCool is designed for cryogenic applications where airlock exchange of specimens into the microscope is not required.

Key features

• Temperature range down to -190°C with stability better than 0.5°C
• Off-column cooling with all-day runtime between fills
• Independent cooling of cold stage and cold trap
• Upgrade path to PP3006 CoolLok
• Extended warranty option

Cold stage and cold trap

A highly stable and thermally isolated nitrogen gas-cooled cold stage attaches to the SEM stage. The location and shape of the cold trap is tailored to suit the internal geometry of the SEM. Both cold stage and cold trap are capable of reaching temperatures down to -190°C with a stability of <0.5°C. For easy specimen exchange an interlocked LED chamber light is fitted.

The cold stage connects to the SEM stage using an adaptor and has a dovetail fitting to accept a cryo specimen holder. When not in use the cold stage is uncoupled and stored within the chamber with the gas and electrical fittings connected.

Cooling dewar, trolley and controller

The cold stage and cold trap are cooled by a floor-mounted, vacuum isolated 21 litre dewar and heat exchanger assembly which at normal operating temperatures can run for up to 24 hours between fills. The gas lines between the dewar and the SEM interface are vacuum isolated for maximum thermal efficiency.

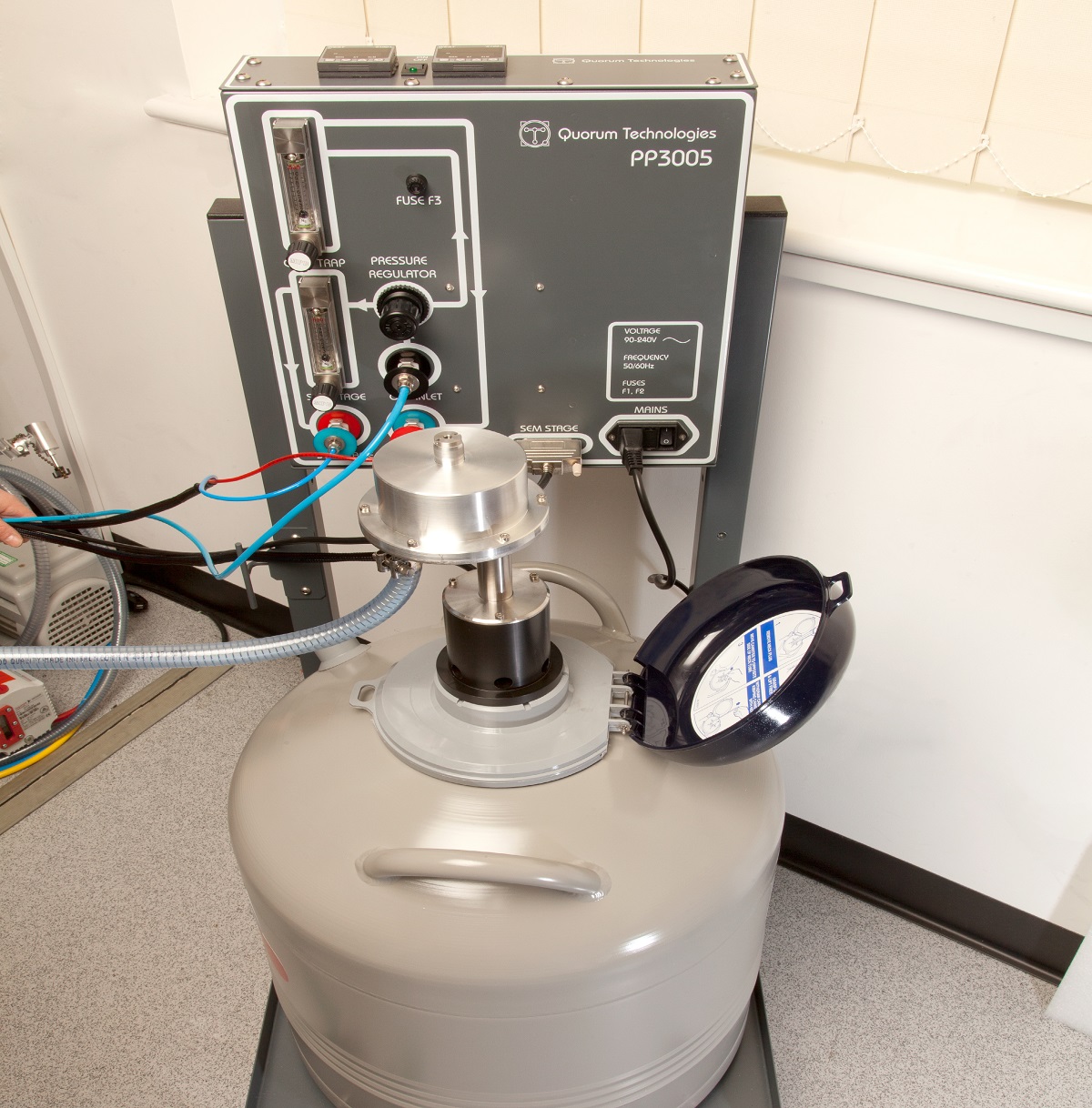

The cooling dewar is located on a floor-mounted trolley which also houses the temperature and gas control system.
