High Density Version Sub-D Feedthroughs
Sub-Miniature D Feedthroughs
High Density Sub-D feedthroughs offer more pins on the same shell size: instead of 15 pins we can fit 26 pins or in the case of 50 pins we can fit 78 pins. This is achieved through reduced pin diameter and a closer pitch. For the vacuum side, PEEK connectors are available.
Special High Density Sub-D Feedthroughs and Connectors up to 78 way:

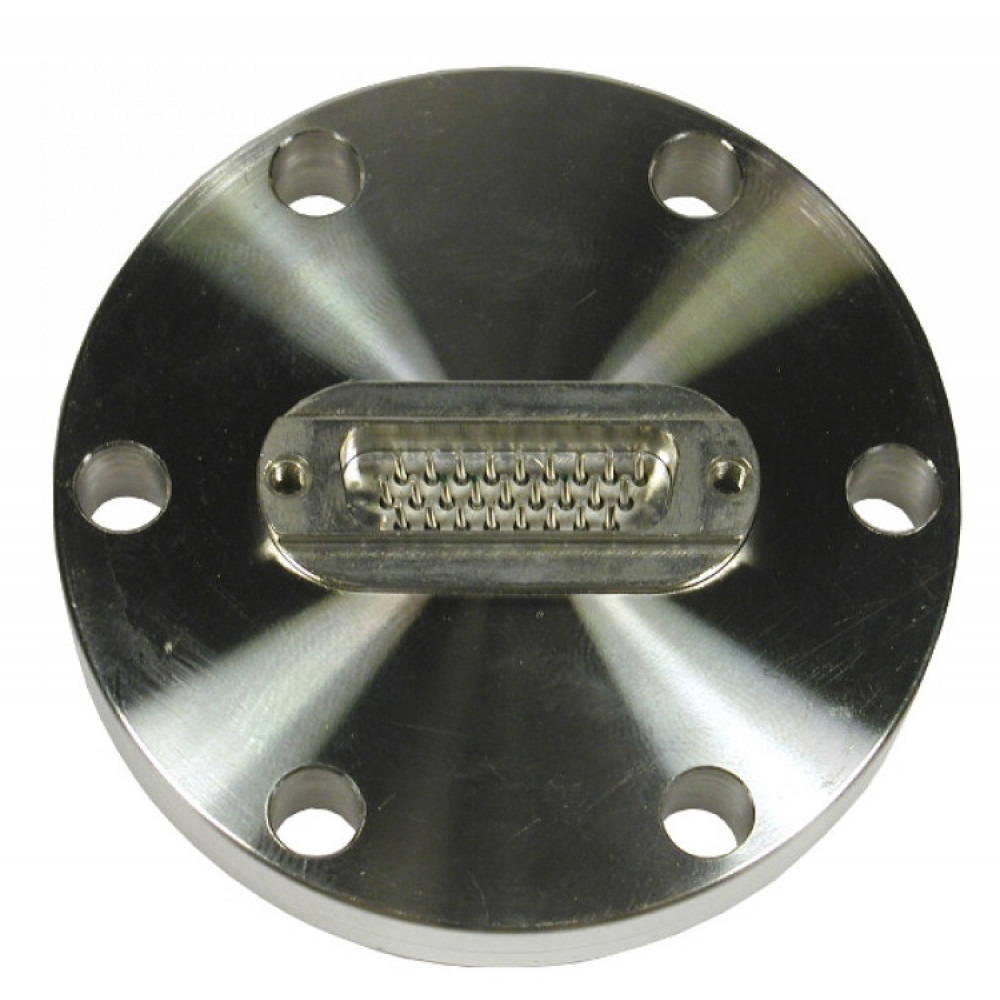

210-HD26-C40
DN40CF FLANGE, SUB-D 26-WAY HIGH DENSITY FEEDTHROUGH
210-HD26-C63
DN63CF FLANGE, SUB-D 26-WAY HIGH DENSITY FEEDTHROUGH
210-HD26-C63-2
DN63CF FLANGE, 2 x SUB-D 26-WAY HIGH DENSITY FEEDTHROUGHS
210-HD26-C63-3
DN63CF FLANGE, 3 x SUB-D 26-WAY HIGH DENSITY FEEDTHROUGHS
210-HD26-K40
DN40KF FLANGE, SUB-D 26-WAY HIGH DENSITY FEEDTHROUGH
210-HD26-K50
DN50KF FLANGE, SUB-D 26-WAY HIGH DENSITY FEEDTHROUGH
210-HD44-C63
DN63CF FLANGE, SUB-D 44-WAY HIGH DENSITY FEEDTHROUGH
210-HD44-ISO63
DN63ISO-K FLANGE, SUB-D 44-WAY HIGH DENSITY FEEDTHROUGH
210-HD78-C63
DN63CF FLANGE, SUB-D 78-WAY HIGH DENSITY FEEDTHROUGH
211-FS26H-AIR
SUB D 26-WAY AIR SIDE CONNECTOR, HIGH DENSITY
211-FS26H-PK
SUB-D 26-WAY UHV PEEK SOCKET, HIGH DENSITY, CRIMP PINS
211-FS78H-PK
SUB-D 78-WAY UHV PEEK SOCKET, HIGH DENSITY, INCLUDES PINS
212-PINFHD-10
CRIMP PINS FOR SUB-D SOCKETS, FEMALE, HIGH DENSITY, PACK OF 10
212-PINFHD-26
CRIMP PINS FOR SUB-D SOCKETS, FEMALE, HIGH DENSITY, PACK OF 26
212-PINMHD-10
CRIMP PINS FOR SUB-D PLUGS, MALE, HIGH DENSITY, PACK OF 10
212-PINMHD-26
CRIMP PINS FOR SUB-D PLUGS, MALE, HIGH DENSITY, PACK OF 26
