Thermocouple Wires
Thermocouple Feedthroughs

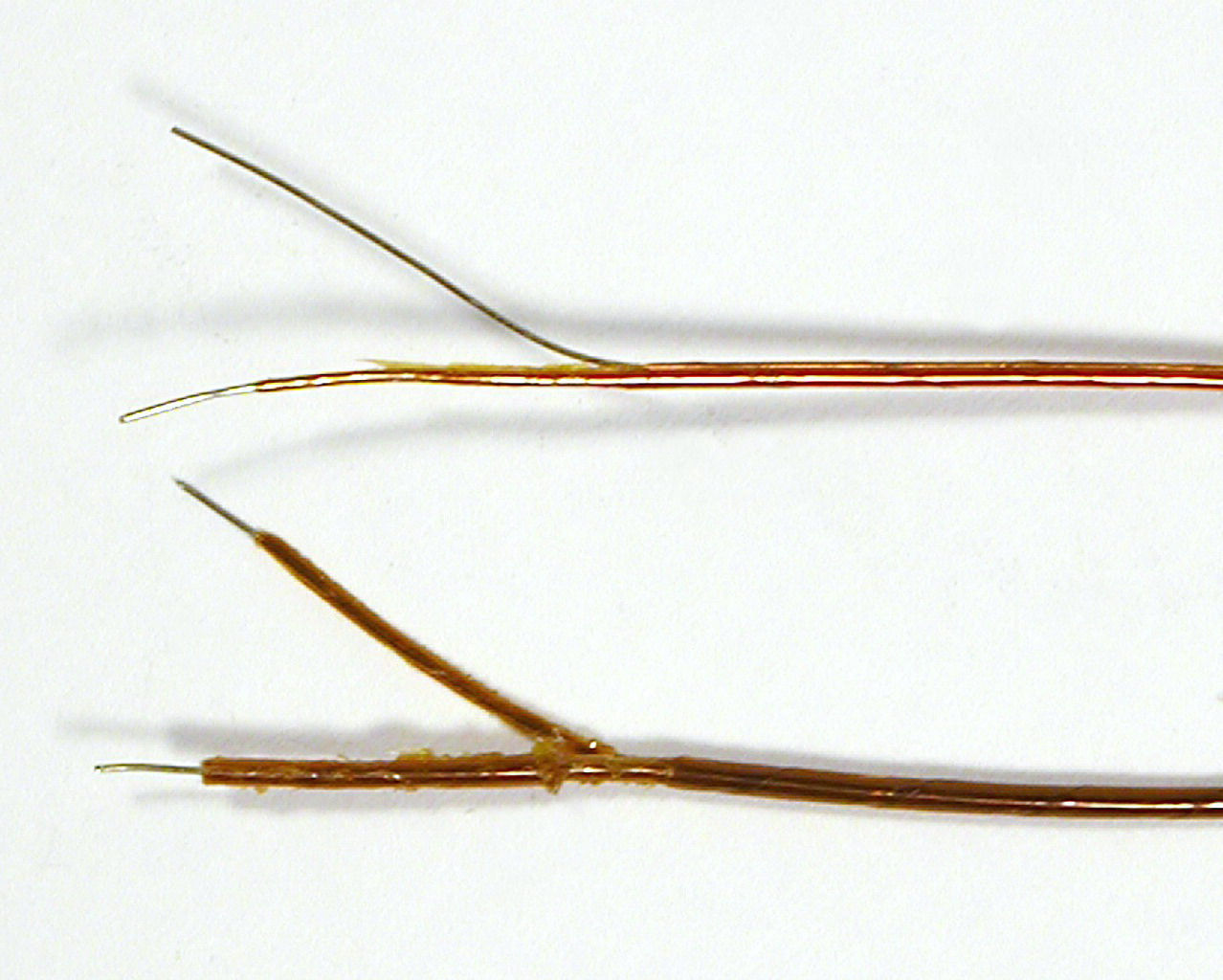

KAP301 radiation resistant Kapton insulated wires. Compared to the standard wires, the radiation resistance is increased by a factor of 100. Also, the maximum usable temperature is higher and goes up to 300°C.
Thermocouple material wires:
311-KAP-TCK-1-L
KAPTON ISOLATED TYPE K T/C WIRE, DOUBLE INSULATED, WELDED TIP NOT INSULATED, 1m
311-KAP-TCK-1-X
KAPTON ISOLATED TYPE K T/C WIRE, DOUBLE INSULATED, WELDED TIP PTFE INSULATED, 1m
311-KAP-TCK-10M
KAPTON ISOLATED TYPE K T/C WIRE, DOUBLE INSULATED, NO JUNCTION , 10m
311-KAP-TCK-1M
KAPTON ISOLATED TYPE K T/C WIRE, DOUBLE INSULATED, NO JUNCTION , 1m
311-KAP-TCK-5M
KAPTON ISOLATED THERMOCOUPLE WIRES-DOUBLE INSULATED. NO JUNCTION, TYPES K, LENGTH 5m
312-KAP-TCK-10M
KAPTON ISOLATED TYPE K T/C WIRE PAIR, SINGLE WIRE INSULATED, NO JUNCTION, 10m
312-KAP-TCK-1M
KAPTON ISOLATED TYPE K T/C WIRE PAIR, SINGLE WIRE INSULATED, NO JUNCTION, 1m
312-KAP-TCK-5M
KAPTON ISOLATED TYPE K T/C WIRE PAIR, SINGLE WIRE INSULATED, NO JUNCTION, 5m
312-KAP-TCN-10M
KAPTON ISOLATED TYPE N T/C WIRE PAIR, SINGLE WIRE INSULATED, NO JUNCTION, 10m
312-KAP-TCN-1M
KAPTON ISOLATED TYPE N T/C WIRE PAIR, SINGLE WIRE INSULATED, NO JUNCTION, 1m
312-KAP-TCN-5M
KAPTON ISOLATED TYPE N T/C WIRE PAIR, SINGLE WIRE INSULATED, NO JUNCTION, 5m
312-PTFE-TCK-10M
PTFE ISOLATED K TYPE THERMOCOUPLE WIRES, JUNCTION NOT MADE, LENGTH 10M
312-PTFE-TCK-5M
PTFE ISOLATED K TYPE THERMOCOUPLE WIRES, JUNCTION NOT MADE, LENGTH 5M
313-TCC-013
BARE THERMOCOUPLE WIRES, TYPE C, 0.13mm DIAMETER, 300mm LONG
313-TCK-025
BARE THERMOCOUPLE WIRES TYPE K 0.25mm.DIAMETER, LENGTH 1m
313-TCK-JOINT
BARE THERMOCOUPLE WIRES TYPE K ,0.25mm DIAMETER WITH WELDED JUNCTION, LENGTH 300mm
313-TCN-025
BARE THERMOCOUPLE WIRES TYPE N 0.25mm.DIAMETER, LENGTH 1m
313-TCN-JOINT
BARE THERMOCOUPLE WIRES TYPE N ,0.25mm DIAMETER WITH WELDED JUNCTION, LENGTH 300mm
