Allectra offer 12 and 19 pin Circular Miniature feedthroughs and 6 pin High Current versions.

The industry standard air side connectors are shielded and EMC compliant. All air side connectors are metric threads. Used in combination with vacuum side housing,  it is possible to achieve a fully shielded connection from air to vacuum.

Multiple feedthrough flanges are available as standard, CF and ISO-K, or custom.

Special versions, e.g. 9 pins on a 25KF flange or 25 pins on a 50KF flange require vacuum side connectors without the mounting screws while standard air side connectors will fit.

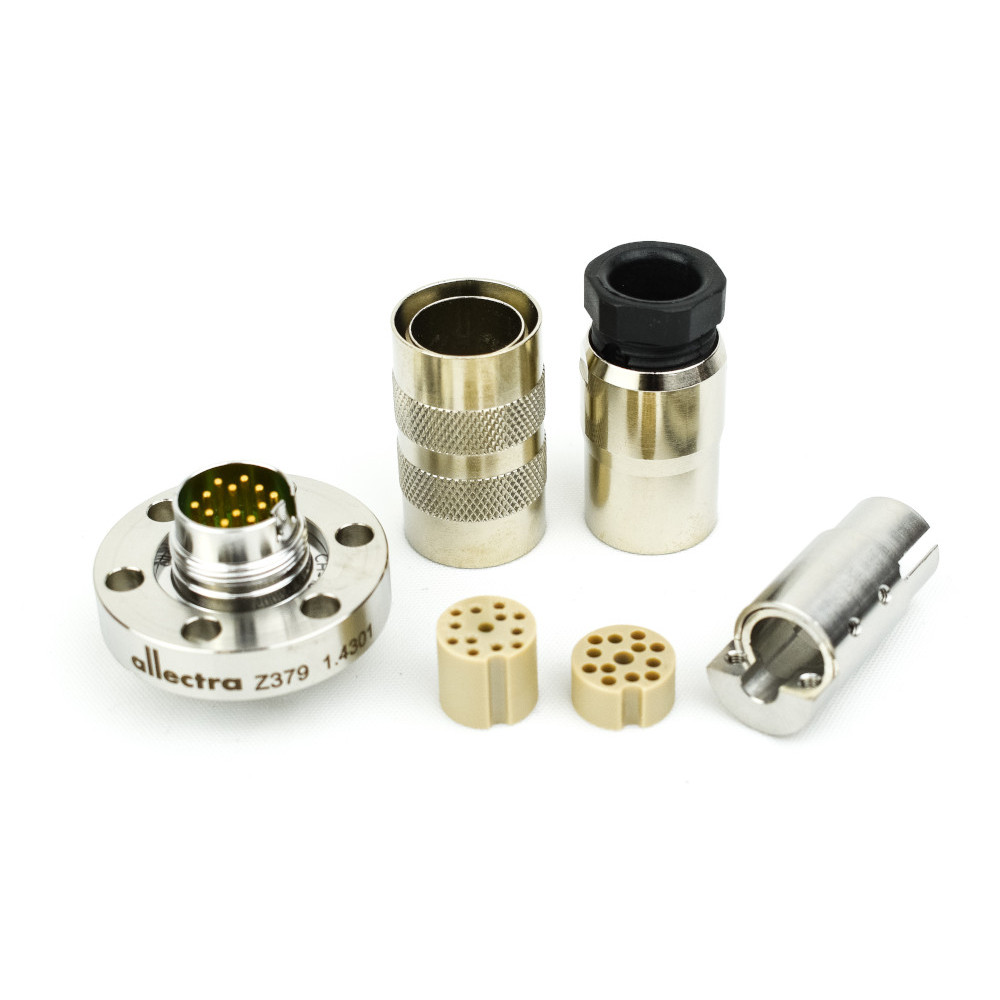

CM sets including Feedthroughs, Air side and UHV Sockets with strain relief:

220-SET12-C16-SR

• DN16CF FLANGE WITH 12 PIN CM FEEDTHROUGH SET, UHV & AIR SIDE CONNECTORS, STRAIN RELIEF

220-SET12-C40-2-SR

• DN40CF FLANGE WITH 2 x 12 PIN CM FEEDTHROUGHS SET, UHV & AIR SIDE CONNECTORS, STRAIN RELIEF

220-SET12-C40-SR

• DN40CF FLANGE WITH 12 PIN CM FEEDTHROUGHS SET, UHV & AIR SIDE CONNECTORS, STRAIN RELIEF

220-SET12-C63-2-SR

• DN63CF FLANGE WITH 2 x 12 PIN CM FEEDTHROUGHS SET, UHV & AIR SIDE CONNECTORS, STRAIN RELIEF

220-SET19-C16-SR

• DN16CF FLANGE WITH 19 PIN CM FEEDTHROUGH SET, UHV & AIR SIDE CONNECTORS, STRAIN RELIEF

220-SET19-C40-2-SR

• DN40CF FLANGE WITH 2 x 19 PIN CM FEEDTHROUGH SET, UHV & AIR SIDE CONNECTORS, STRAIN RELIEF

220-SET19-C40-SR

• DN40CF FLANGE WITH 19 PIN CM FEEDTHROUGH SET, UHV & AIR SIDE CONNECTORS, STRAIN RELIEF

220-SET19-C63-2-SR

• DN63CF FLANGE WITH 2 x 19 PIN CM FEEDTHROUGH SET, UHV & AIR SIDE CONNECTORS, STRAIN RELIEF

220-SET6-C16-SR

• DN16CF FLANGE WITH 6 PIN CM FEEDTHROUGH SET, UHV & AIR SIDE CONNECTORS, STRAIN RELIEF

220-SET6-C40-2-SR

• DN40CF FLANGE WITH 2 x 6 PIN CM FEEDTHROUGH SET, UHV & AIR SIDE CONNECTORS, STRAIN RELIEF

220-SET6-C40-SR

• DN40CF FLANGE WITH 6 PIN CM FEEDTHROUGH SET, UHV & AIR SIDE CONNECTORS, STRAIN RELIEF

220-SET6-C63-2-SR

• DN63CF FLANGE WITH 2 x 6 PIN CM FEEDTHROUGH SET, UHV & AIR SIDE CONNECTORS, STRAIN RELIEF
