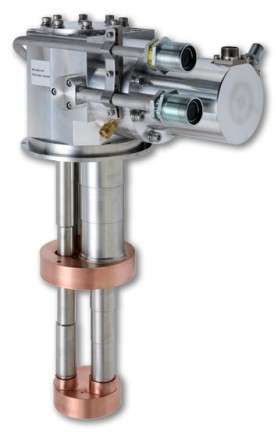

The RP-082B2 Pulse Tube Cryocooler is one of SHI’s mid-capacity 4K Pulse Tubes, with a second-stage capacity of 1.0 W @ 4.2 K (50/60 Hz).  It is an integrated unit that operates with both air and water-cooled helium compressors.

SHI’s 4K Pulse Tube Cryocoolers embody leading-edge technology and provide low vibration, high reliability and low maintenance requirements.

They are uniquely designed with no moving parts inside the cold head. In addition, they feature an optional separated valve unit to further reduce vibration, enable operation in higher magnetic fields and ease maintenance requirements. SHI Pulse Tube Cryocoolers provide a stable low-temperature solution for sensitive measurement and analytical applications.

Standard Scope of Supply

• RP-082B2 Cold Head
• F-70LP/H or FA-70L/H Compressor
• Helium Gas Lines – 20 m (66 ft.) or 10 m + 10m (33 ft. + 33 ft.) [IDU + ODU]
• Cold Head Cable – 20 m (66 ft.)
• Power Cable – 5 m (16.5 ft.); 2 m (6 ft.); or 5 m + 10 m (16.5 ft. + 33 ft.) [IDU + ODU]
• Hose Nipples
• Filter Unit with 1 m (3 ft.) Helium Gas Line
• Tool Kit
