High Current Version Sub-D Feedthroughs
Sub-Miniature D Feedthroughs

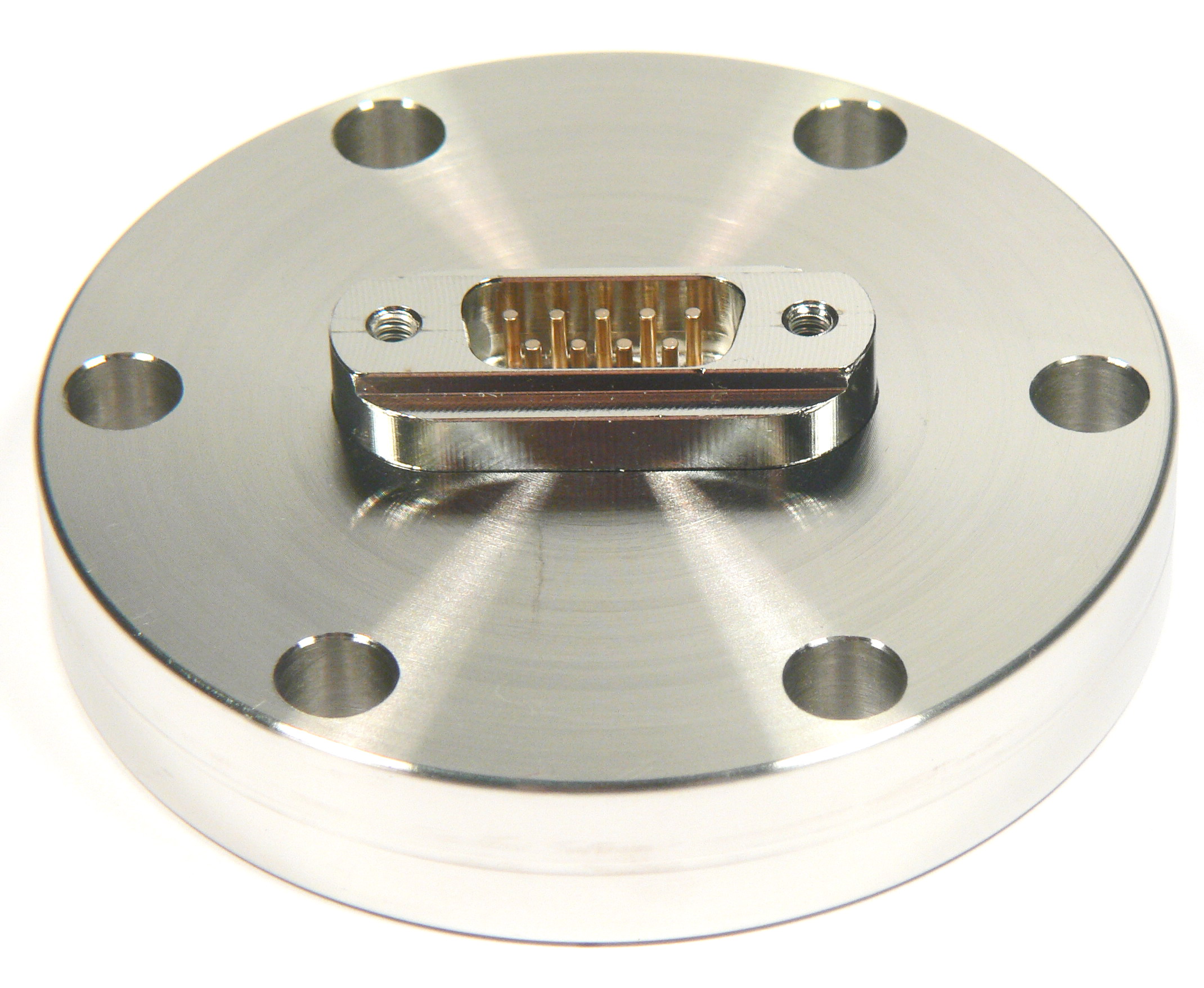

A new pin technology means standard Sub-D feedthroughs with 9 to 50 pins can now be used for significantly higher current ratings. The continuous current per pin is 6A (all pins loaded) and for short periods, 10A per pin, by using special crimp pins and a new in-vacuum cable. Opposite:2 x High Current (HC) 15 -pin Feedthroughs on a 63CF flange.
With 30 pins, these feedthroughs can transport 180A continuously or up to 300A for a short time into the vacuum system.
Special versions of the Sub-D Feedthrough to carry higher current:
210-D09-C40-HC
DN40CF FLANGE, SUB-D 9-WAY FEEDTHROUGH, UHV, HIGH CURRENT, 10A
210-D25-C63-HC
DN63CF FLANGE, SUB-D 25-WAY FEEDTHROUGH, UHV, HIGH CURRENT, 10A
211-FS09-AIR-HC
SUB-D 9-WAY AIR SIDE SOCKET, FEMALE, HIGH CURRENT
211-FS15-AIR-HC
SUB-D 15-WAY AIR SIDE SOCKET, FEMALE, HIGH CURRENT
211-FS25-AIR-HC
SUB-D 25-WAY AIR SIDE SOCKET, FEMALE, HIGH CURRENT, INCLUDES ABS HOUSING
212-PINF-10-HC
CRIMP PINS FOR SUB-D SOCKETS, HV/UHV, HIGH CURRENT, PACK OF 10
212-PINF-15-HC
CRIMP PINS FOR SUB-D SOCKETS, HV/UHV, HIGH CURRENT, PACK OF 15
212-PINF-25-HC
CRIMP PINS FOR SUB-D SOCKETS, HV/UHV, HIGH CURRENT, PACK OF 25
215-BP-D09-HC
BASE PLATE 9 PIN SUB-D FEEDTHROUGH, HIGH CURRENT VERSION,O-RING SEALED (HIGH VACUUM ONLY)
215-BP-D37-HC
BASE PLATE 37 PIN SUB-D FEEDTHROUGH, HIGH CURRENT VERSION,O-RING SEALED (HIGH VACUUM ONLY)
215-BP-D50-HC
BASE PLATE 50 PIN SUB-D FEEDTHROUGH, HIGH CURRENT VERSION,O-RING SEALED (HIGH VACUUM ONLY)
