MS & M12 Socket Power Feedthroughs
Power/High Voltage Feedthroughs

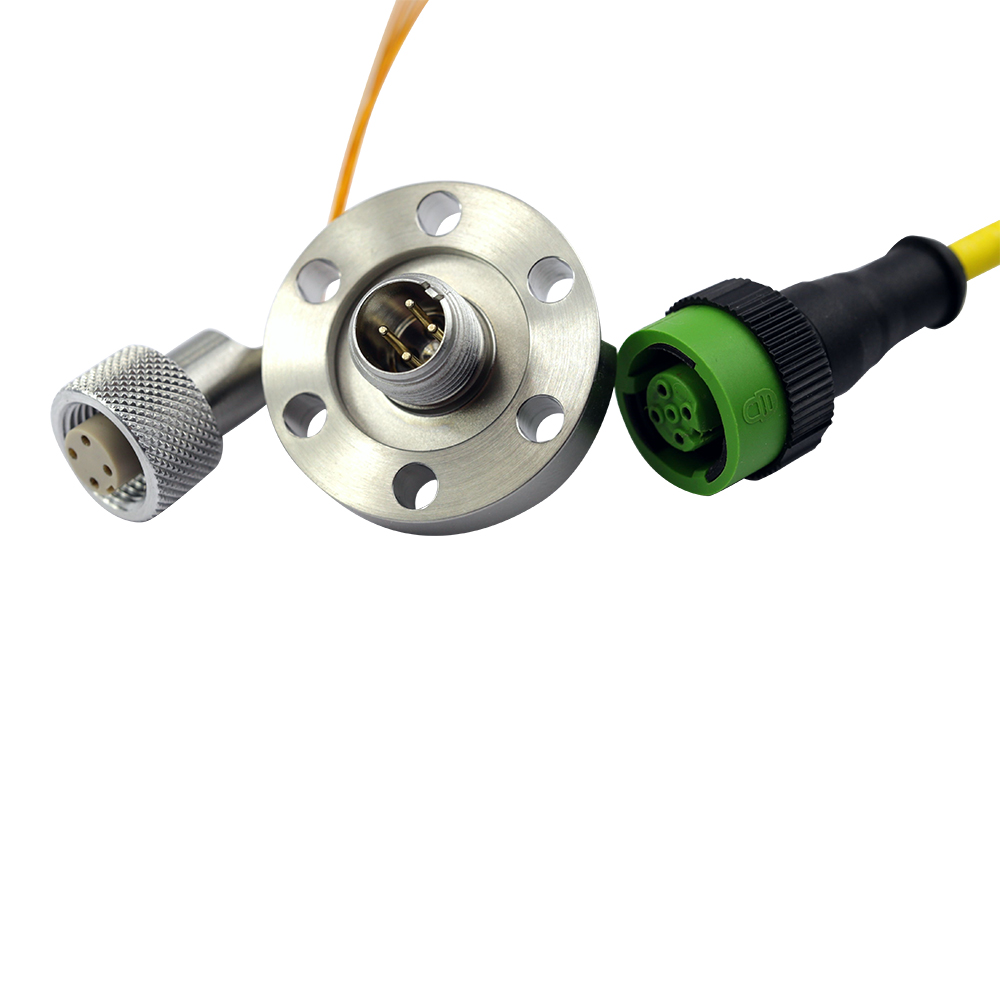

Allectra offers a UHV M12 Feedthrough including UHV compatible connector. For less demanding applications, HV and standard connectors can be used on both sides.
M12 Connectors are very commonly used for industrial automation and sensor applications.
The Feedthrough has 4 pins and a voltage rating of 250V. The maximum current is 3A and the temperature range is -200°C to +230°C.
For air side use, Allectra offers Quick Disconnect connectors, which only need a 90° turn of the nut to be secured. Allectra recommends the shielded double twisted pair wire 311-KAPM-060-PAIR2 to be used with this feedthrough.
Allectra also offer Multi-way feedthroughs with MS Circular Sockets, with 10, 23 or 40A per pin. The sockets comply with MIL-C-5015. High Voltage 12KV Multi-way feedthroughs are also available with 7.5A per pin.
Multi-way power Feedthroughs with Circular MS connectors; M12 types:
220-CON-M12X4-AIR-5M
M12 TYPE CONNECTOR, AIR SIDE, 5m CABLE
220-CON-M12X4-AIR90-5M
M12 TYPE CONNECTOR, AIR SIDE 90O CONNECTOR, 5m CABLE
220-CON-M12X4-HV
M12 TYPE CONNECTOR, HIGH VACUUM
220-CON-M12X4-UHV
M12 TYPE CONNECTOR, ULTRA HIGH VACUUM
220-M12X4-C16
DN16CF FLANGE WITH M12 FEEDTHROUGH
220-M12X4-C40
DN40CF FLANGE WITH M12 FEEDTHROUGH
220-M12X4-C40-2
DN40CF FLANGE WITH 2 x M12 FEEDTHROUGHS
220-M12X4-K25
DN25KF FLANGE WITH M12 FEEDTHROUGH
220-M12X4-K40
DN40KF FLANGE WITH M12 FEEDTHROUGH
220-M12X4-K50-2
DN50KF FLANGE WITH 2 x M12 FEEDTHROUGHS
220-M12X4-SET-C16
DN16CF FLANGE WITH M12 FEEDTHROUGH SET, UHV & AIR SIDE CONNECTORS, 5m CABLE
220-M12X4-SET-K25
DN25KF FLANGE WITH M12 FEEDTHROUGH SET, UHV & AIR SIDE CONNECTORS, 5m CABLE
220-M12X4-SET90-C16
DN16CF FLANGE WITH M12 FEEDTHROUGH SET, UHV & AIR SIDE 90° CONNECTORS, 5m CABLE
220-M12X4-SET90-K25
DN25KF FLANGE WITH M12 FEEDTHROUGH SET, UHV & AIR SIDE 90° CONNECTORS, 5m CABLE
221-10AL700-10-C16
DN16CF MULTIPIN FEEDTHROUGH, 10 PINS, 700V, AIR SIDE MS CONNECTOR
221-10AL700-10-C40
DN40CF MULTIPIN FEEDTHROUGH, 10 PINS, 700V, AIR SIDE MS CONNECTOR
221-10AL700-20-C40
DN40CF MULTIPIN FEEDTHROUGH, 20 PINS, 700V, 10A, AIR SIDE MS CONNECTOR
221-10AL700-20-K40
DN40KF MULTIPIN FEEDTHROUGH, 20 PINS, 700V, 10A, AIR SIDE MS CONNECTOR
221-10AL700-35-C40
DN40CF MULTIPIN FEEDTHROUGH, 35 PINS, 700V, 10A, AIR SIDE MS CONNECTOR
221-10AL700-35-K40
DN40KF MULTIPIN FEEDTHROUGH, 35 PINS, 700V, 10A, AIR SIDE MS CONNECTOR
221-10AL700-4-C16
DN16CF MULTIPIN FEEDTHROUGH, 4 PINS, ALUMEL CONDUCTORS, 700V, AIR SIDE MS CONNECTOR
221D-10AL700-4-K16
DN16KF MULTIPIN FEEDTHROUGH, 4 PINS, ALUMEL CONDUCTORS, 700V, AIR SIDE MS CONNECTOR
221-10AL700-6-C16
DN16CF MULTIPIN FEEDTHROUGH, 6 PINS, ALUMEL CONDUCTORS, 700V, AIR SIDE MS CONNECTOR
221-10AL700-6-C40
DN40CF MULTIPIN FEEDTHROUGH, 6 PINS, ALUMEL CONDUCTORS, 700V, AIR SIDE MS CONNECTOR
221-10AL700-6-K25
DN25KF MULTIPIN FEEDTHROUGH, 6 PINS, ALUMEL CONDUCTORS, 700V, AIR SIDE MS CONNECTOR
221-23CU700-2-C40
DN40CF MULTIPIN FEEDTHROUGH, 2 PINS, Cu CONDUCTORS, 700V, AIR SIDE MS CONNECTOR
221-23CU700-3-C40
DN40CF MULTIPIN FEEDTHROUGH, 3 PINS, Cu CONDUCTORS, 700V, AIR SIDE MS CONNECTOR
221-23CU700-4-C40
DN40CF MULTIPIN FEEDTHROUGH, 4 PINS, Cu CONDUCTORS, 700V, AIR SIDE MS CONNECTOR
221-23CU700-8-C40
DN40CF MULTIPIN FEEDTHROUGH, 8 PINS, Cu CONDUCTORS, 700V, AIR SIDE MS CONNECTOR
221-40MO700-2-C40
DN40CF MULTIPIN FEEDTHROUGH, 2 MOLYBDENUM PINS, 700V, AIR SIDE MS CONNECTOR
221-40MO700-2-K40
DN16KF MULTIPIN FEEDTHROUGH, 2 MOLYBDENUM PINS, 28A, 700V, AIR SIDE MS CONNECTOR
221-40MO700-4-C40
DN40CF MULTIPIN FEEDTHROUGH, 4 MOLYBDENUM PINS, 700V, AIR SIDE MS CONNECTORS
221-40MO700-4-K40
DN40KF MULTIPIN FEEDTHROUGH, 4 MOLYBDENUM PINS, 700V, AIR SIDE MS CONNECTORS
267-075HV12K-2-C16
DN16CF MS FEEDTHROUGH, 2x MOLYBDENUM CONDUCTORS, 12KV, 7.5A, AIR SIDE MS CONNECTOR
267-075HV12K-4-C16
DN16CF MS FEEDTHROUGH, 4x MOLYBDENUM CONDUCTORS, 12KV, 7.5A, AIR SIDE MS CONNECTOR
267-075HV12K-4-C40
DN40CF MS FEEDTHROUGH, 4x MOLYBDENUM CONDUCTORS, 12KV, 7.5A, AIR SIDE MS CONNECTOR
267-075HV12K-4-K40
DN40KF MS FEEDTHROUGH, 4x MOLYBDENUM CONDUCTORS, 12KV, 7.5A, AIR SIDE MS CONNECTOR
267-075HV12K-7-C16
DN16CF MS FEEDTHROUGH, 7x MOLYBDENUM CONDUCTORS, 12KV, 7.5A, AIR SIDE MS CONNECTOR
267-075HV12K-7-C40
DN40CF MS FEEDTHROUGH, 7x MOLYBDENUM CONDUCTORS, 12KV, 7.5A, AIR SIDE MS CONNECTOR
267-075HV12K-7-K40
DN40KF MS FEEDTHROUGH, 7x MOLYBDENUM CONDUCTORS, 12KV, 7.5A, AIR SIDE MS CONNECTOR
267-CON12K-4
VACUUM SIDE PEEK CONNECTOR FOR 12KV MS TYPE FEEDTHROUGHS , 2 or 4 PINS
267-CON12K-7
VACUUM SIDE PEEK CONNECTOR FOR 12KV MS TYPE FEEDTHROUGHS , 7 PINS, Will not pass through 16CF flange
221-10AL700-4-K16
DN16KF MULTIPIN FEEDTHROUGH, 4 PINS, ALUMEL CONDUCTORS, 700V, AIR SIDE MS CONNECTOR
