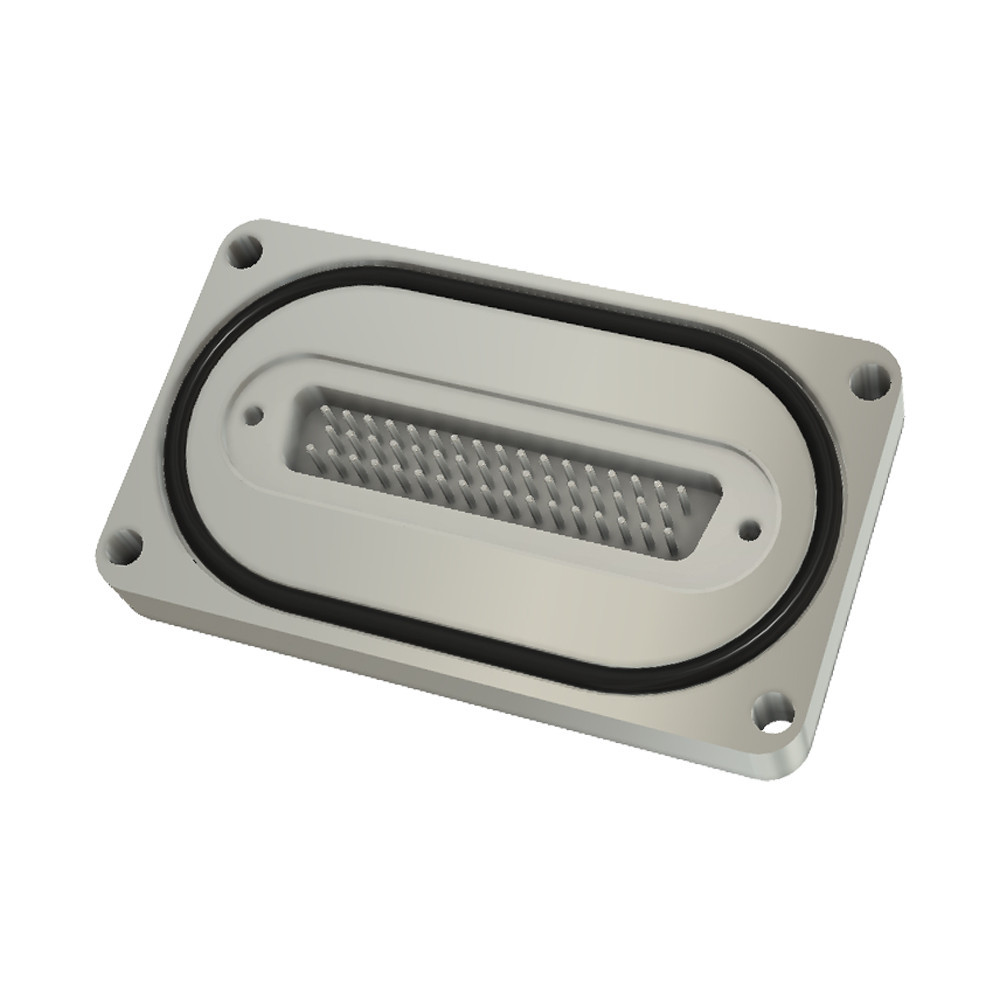

For applications down to 10-7 mbar, the Sub-D on a rectangular base plate with Viton O-ring seal is the perfect solution to incorporate Sub-D feedthroughs onto Aluminium chambers and enables quick exchange if a different configuration is required.

Baseplate feedthroughs are designed to fit through a 1″ (25.4mm) hole and sealed by compressing an O-Ring between 2 nuts. Applications for these feedthroughs include High Vacuum Coaters.

Standard Baseplates with Sub-D Feedthroughs, Viton O-Ring Included:

215-BP-D09

BASE PLATE 9 PIN SUB-D FEEDTHROUGH, O-RING SEALED (HIGH VACUUM ONLY)

215-BP-D09-HC

BASE PLATE 9 PIN SUB-D FEEDTHROUGH, HIGH CURRENT VERSION,O-RING SEALED (HIGH VACUUM ONLY)

215-BP-D37

BASE PLATE 37 PIN SUB-D FEEDTHROUGH, O-RING SEALED (HIGH VACUUM ONLY)

215-BP-D37-HC

BASE PLATE 37 PIN SUB-D FEEDTHROUGH, HIGH CURRENT VERSION,O-RING SEALED (HIGH VACUUM ONLY)

215-BP-D50

BASE PLATE 50 PIN SUB-D FEEDTHROUGH, O-RING SEALED (HIGH VACUUM ONLY)

215-BP-D50-HC

BASE PLATE 50 PIN SUB-D FEEDTHROUGH, HIGH CURRENT VERSION,O-RING SEALED (HIGH VACUUM ONLY)

215-BP-D15

BASE PLATE 15 PIN SUB-D FEEDTHROUGH, O-RING SEALED (HIGH VACUUM ONLY)

215-BP-D25

BASE PLATE 25 PIN SUB-D FEEDTHROUGH, O-RING SEALED (HIGH VACUUM ONLY)

215-BP-D15-HC

BASE PLATE 15 PIN SUB-D FEEDTHROUGH, HIGH CURRENT VERSION,O-RING SEALED (HIGH VACUUM ONLY)

215-BP-D25-HC

BASE PLATE 25 PIN SUB-D FEEDTHROUGH, HIGH CURRENT VERSION,O-RING SEALED (HIGH VACUUM ONLY)
